We get this call a few times a month, usually from someone standing at an open air handler with a tape measure in hand. They run an American Standard system, they have found two part numbers that look almost like twins, and they cannot tell whether the FLR06069 or the FLR06070 is the one they need. The answer is the width.
Both filters stand 27 inches tall and sit 5 inches deep. The FLR06069 is 17.5 inches wide and the FLR06070 is 21 inches wide, so each one fits a different American Standard Perfect Fit cabinet. Get the width right and it slides in and seats flush. The wrong one either refuses to go in or leaves gaps that let dust ride straight past it.
If your system takes the narrower of the two, you are shopping for American Standard 17.5x27x5 air filters FLR06069. Before we line them up, picture what an air filter is doing in there. It catches the dust, pollen, and pet dander your blower would otherwise send back through every vent in the house, which is the simplest path to fresher household air.
TL;DR Quick Answers
What’s the difference between the FLR06069 and FLR06070?
Width, plain and simple. Both stand 27 inches tall and 5 inches deep. The 06069 is 17.5 inches wide and the 06070 is 21 inches wide, so they drop into different American Standard Perfect Fit cabinets. Pick your size by the cabinet first, then choose MERV 8, 11, or 13 for how fine you want the filtration. The two will not swap for each other.
Top Takeaways
- Both filters share the same 27″ height and 5″ depth. Width is the only thing that changes.
- The FLR06069 measures 17.5″ wide (actual ~17.2 x 26.2 x 5″). The FLR06070 measures 21″ wide (actual ~20.7 x 26.2 x 5″).
- The 06069 matches the Trane BAYFTFR17M and TFM175/EQBFM175 cabinets. The 06070 matches the Trane BAYFTFR21M and TFM210/EQBFM210 cabinets.
- They do not swap for each other. Match the width to your cabinet and you are set.
- Both come in MERV 8, 11, and 13, where a higher rating means fewer airborne allergens. Size and MERV are two separate calls.
- Not sure of your size? Read the old frame, measure the width, or check the model plate on the air handler.
- Staying on schedule is the easiest path to healthier indoor air. When you install, point the airflow arrow toward the blower.

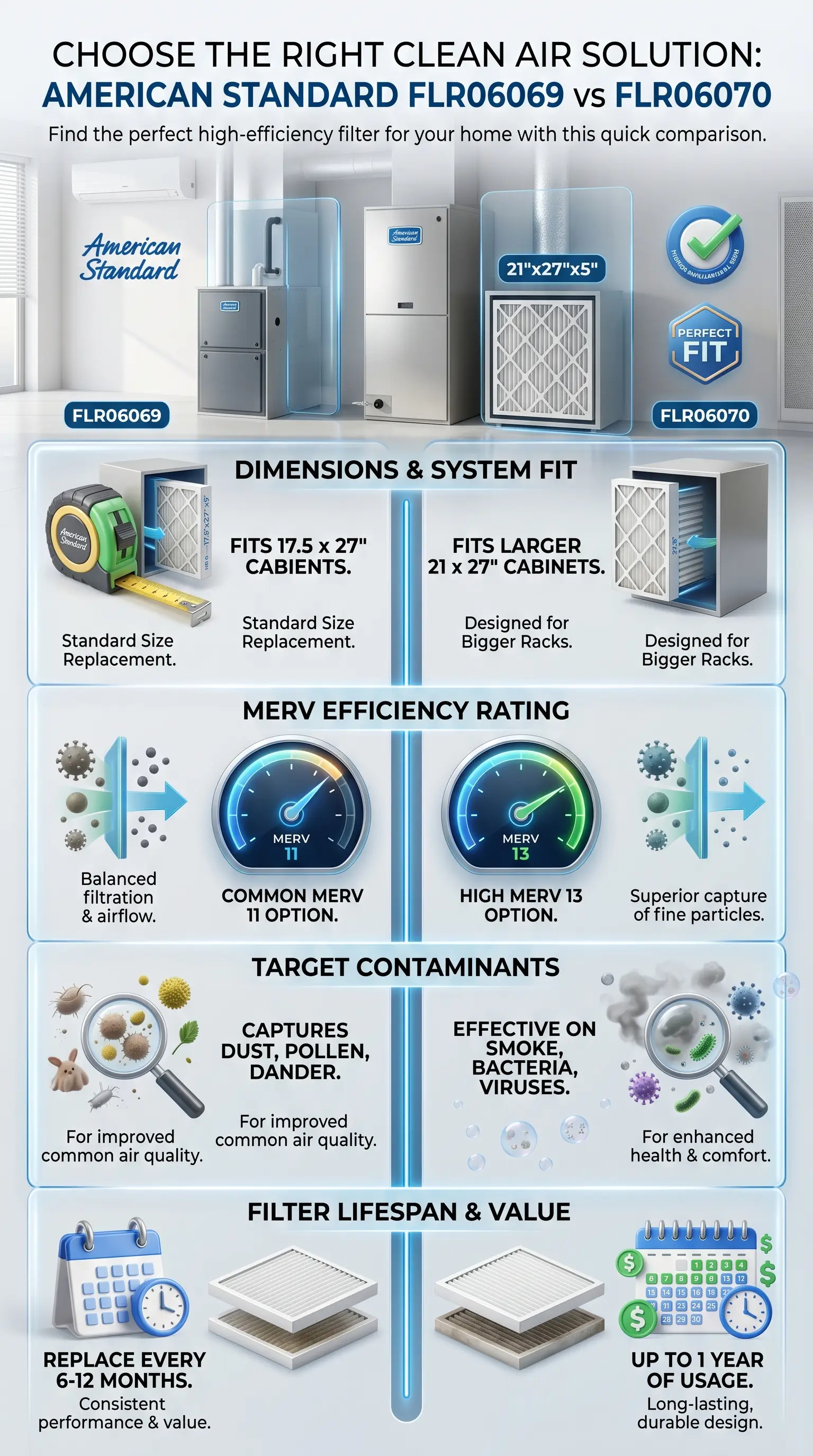

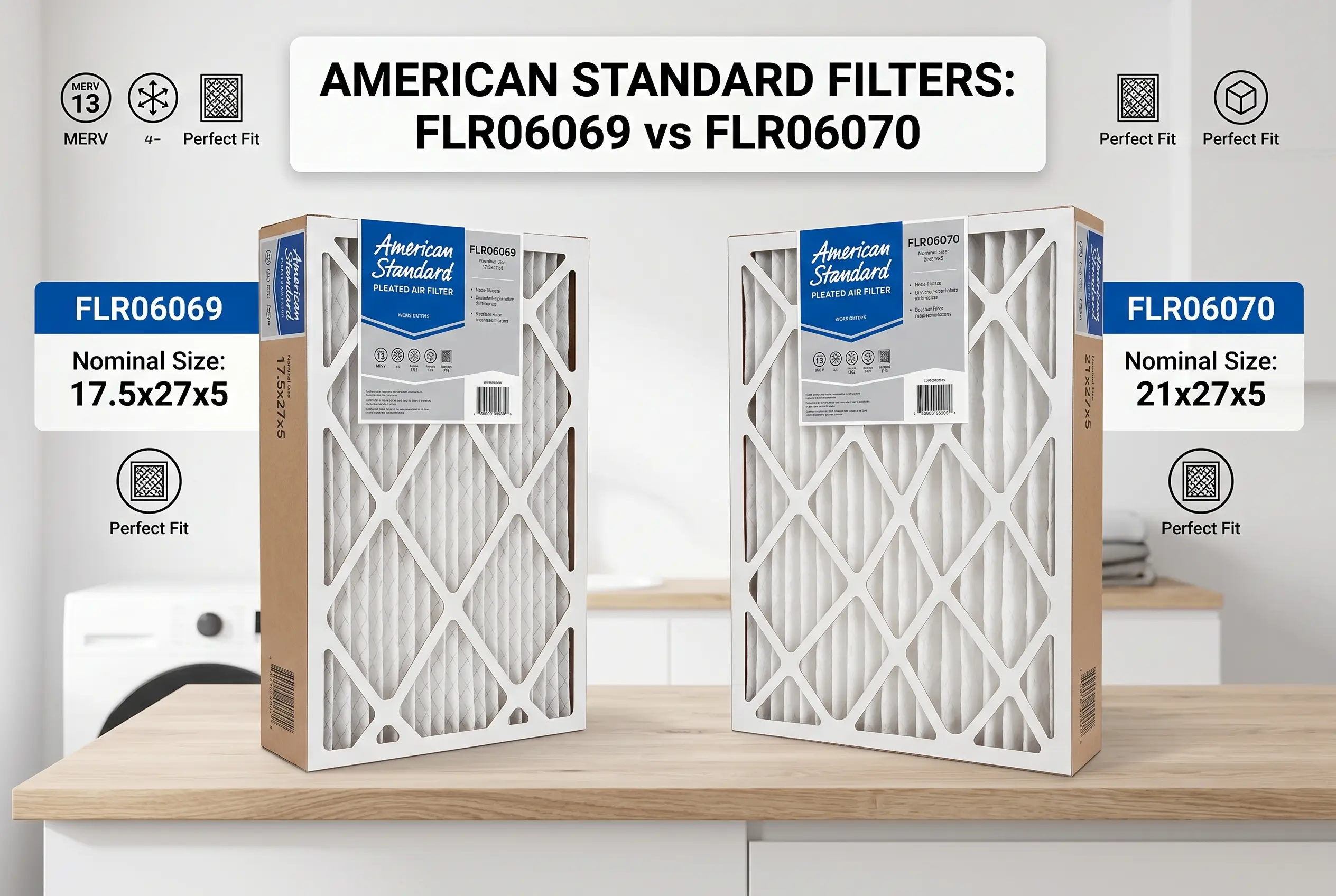

Start with the numbers, because they carry the whole story. The FLR06069 runs 17.5 by 27 by 5 inches, and the media itself measures about 17.2 by 26.2 by 5. The FLR06070 runs 21 by 27 by 5, with an actual size near 20.7 by 26.2 by 5. Notice what holds steady. Both are 27 inches tall and 5 inches deep, so the width carries the whole difference, with the 06069 coming in roughly three and a half inches narrower than the 06070.
That difference matters, because American Standard built these for two different Perfect Fit cabinets:
- FLR06069 (Trane equivalent BAYFTFR17M) seats in the narrower TFM175 and EQBFM175 cabinets.
- FLR06070 (Trane equivalent BAYFTFR21M) seats in the wider TFM210 and EQBFM210 cabinets.
Push the wrong width into either cabinet and it will not sit the way it should. If you are not sure which one you have, here are the three checks we run on every service call:
- Read the old filter. The size and part number are printed right on the cardboard frame.
- Measure the opening. Width is the number that matters, since the height and depth already match.
- Check the model plate on the air handler for the TFM or EQBFM number.
One thing trips people up more than anything else, so we will be clear about it. Size and MERV are two different decisions. The 06069 and the 06070 both come in MERV 8, 11, and 13, and MERV tells you how fine the filtration is, not whether the filter fits. Choose your size by the cabinet, then choose your MERV by your household. From what we have seen in our own testing, MERV 8 handles everyday dust and lint, MERV 11 takes on pollen and pet dander, and MERV 13 reaches the finer smoke and smog particles. The higher you go, the more it catches, so for a home with allergies the step up usually earns its place.
When it is time to restock, pleated multi-packs make it easy to keep cleaner air at home, trap everyday dust, and get long-lasting filtration without thinking twice. For the dustier, higher-traffic rooms, a deeper pleated filter helps you defend against dust, and buying in bulk keeps affordable cleaner air within reach.
When you swap the filter, find the airflow arrow on the frame and point it toward the blower. American Standard cabinets also have a keyway that resists a backwards fit, so if the filter fights you on the way in, stop and check the direction before you push. And if a system ever needs more than a filter, professional installation help is worth a call before you force anything.
“The mistake we see most often is folks ordering by height and depth alone, since those match on both filters. The width is the one number that decides whether it seats, so read the size printed on your old frame before you order and you will not bring home the wrong one.”
7 Essential Resources
These are the independent sources we send homeowners to when they want to read past the sales talk.
- EPA — Air Cleaners and Air Filters in the Home
- U.S. Department of Energy, Energy Saver — Air Conditioner Maintenance
- ENERGY STAR — Heat & Cool Efficiently
- American Lung Association — Air Cleaning
- CDC (NIOSH) — Ventilation: Frequently Asked Questions
- Florida Department of Health — Indoor Air Quality
- University of Georgia Extension — HVAC Filters, Duct Cleaning, and Indoor Air Quality
3 Statistics
On the service calls we run, the filter is the cheapest fix with the biggest return. The U.S. Department of Energy reports that swapping a dirty filter for a clean one can cut an air conditioner’s energy use by 5 to 15 percent. (U.S. Department of Energy)
We say the same thing in every living room: the air inside matters more than people expect. The EPA puts the figure at about 90 percent of our time spent indoors, which is exactly why the filter you pick earns its keep. (U.S. EPA)
When someone asks whether a higher rating is worth it, we point to the standard itself. The CDC explains that MERV ratings run from 1 to 16, with higher numbers catching a wider range of particle sizes, which is why MERV 13 gets the nod wherever a system can handle it. (CDC / NIOSH)
Final Thoughts and Opinion
Here is where we land after years of these calls. Size first, MERV second. The FLR06069 and the FLR06070 do not swap for each other, and the width is the line between them. Once the size is settled, the MERV choice is yours, based on who lives in the home and what they breathe. Our honest advice is simple. Nail the size, set a monthly reminder to eyeball the filter, and you have handled about the easiest piece of home comfort there is.
When a system needs a hand beyond the filter, it helps to know where to turn. We point neighbors toward quality cooling equipment and local installation services when it is time for new gear. For repairs, you can compare local repair quotes and lean on trusted local technicians who actually know our area and our climate.
Frequently Asked Questions
Are the FLR06069 and FLR06070 interchangeable?
No. They match on height and depth but differ in width, so each one fits a different American Standard Perfect Fit cabinet.
What size is the FLR06069?
Nominal 17.5 by 27 by 5 inches, with an actual media size near 17.2 by 26.2 by 5.
What size is the FLR06070?
Nominal 21 by 27 by 5 inches, with an actual media size near 20.7 by 26.2 by 5.
Which Trane filter matches each one?
The 06069 matches the Trane BAYFTFR17M. The 06070 matches the Trane BAYFTFR21M.
Does a higher MERV change the size?
No. MERV changes how fine the filtration is, not the dimensions. Both sizes come in MERV 8, 11, and 13, and a higher MERV simply filters finer, which can mean real relief from allergens for sensitive households.
How often should I replace it?
Check it monthly and plan on about every three months, sooner with pets, heavy use, or a rough allergy season. Staying on top of timely filter changes keeps your airflow strong and your energy bills lower.
What if my system needs more than a new filter?
Then it is time to bring in a pro. You can compare free repair estimates and weigh your options before you commit to any work.
